6-Axis Robot & Extendable Ground Track
Features a 2000mm robotic reach combined with a customizable track up to 20m. Delivers precise, consistent execution on long and complex fillet welds for H-beams, roof beams, and open structures.
Fully Integrated Smart Control System
Seamlessly synchronizes offline programming, robot control, and vision modules. Features a built-in process database with external import support, transforming complex multi-module operations into simple, plug-and-play efficiency.
Auto-Cleaning Station for Continuous Operation
Fully synchronized with the water-cooling system. Automatically maintains torch nozzles and contact tips, ensuring flawless weld quality and system stability during high-intensity, continuous operations.

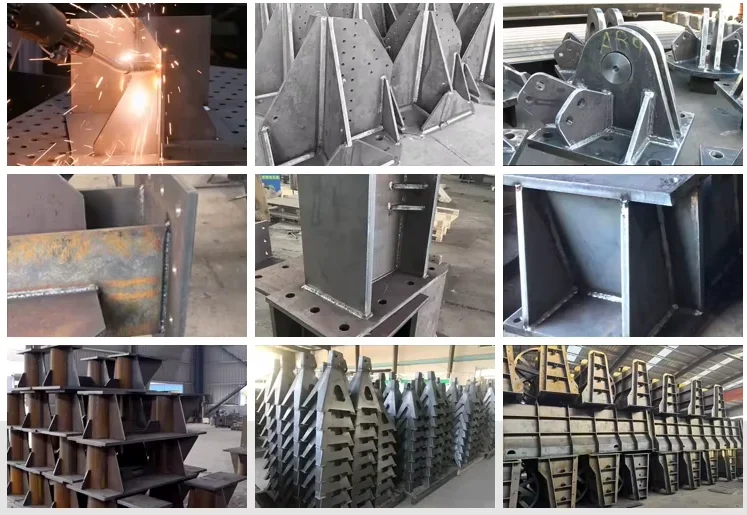

Proven Welding Capabilities for Heavy Steel Structures
Delivering consistent, high-penetration fillet welds across extended lengths and complex nodes.
Technical Parameters | |
Model | MK-WR |
Movement radiusr | 2010 |
Repeat positioning accuracy | ±0.05mm |
Track carrying weight | 1000kg |
Positioning accuracy | ±0.05mm |
Machine power | ≤8.5KW |
Workpiece material | Carbon steel/ low alloy steel/ stainless steel (non-mirror finish) |
Welding method | MIG/MAG welding |
Welding position | Flat welding PA/ flat fillet welding PB/ horizontal welding PC/ vertical upward welding PF/ vertical downward welding PG |
protective gas | 80% Ar + 20% CO2、100% CO2、95%Ar+5%O2 |
Welding wire diameter | ø1.0mm, ø1.2mm, ø1.6mm solid wire, ø1.2mm flux-cored wire |
Positioner type adaptation table | Double axis positioner/ single axis positioner |
Model Compatibility Table | Six-axis fixed base Seven-axis upright Seven-axis cantilever Eight-axis cantilever Nine-axis cantilever (Y-X-Z configuration) Nine-axis cantilever (Y-X-Z configuration) |
Y track length | 3000/10000/12000mm/20000/Optional |
maximum walking speed | 50m/min |
Overall dimensions | 3400*3000*2800mm |
Installation method | Floor-standing/ floor cabinet/ hanging/optional |
